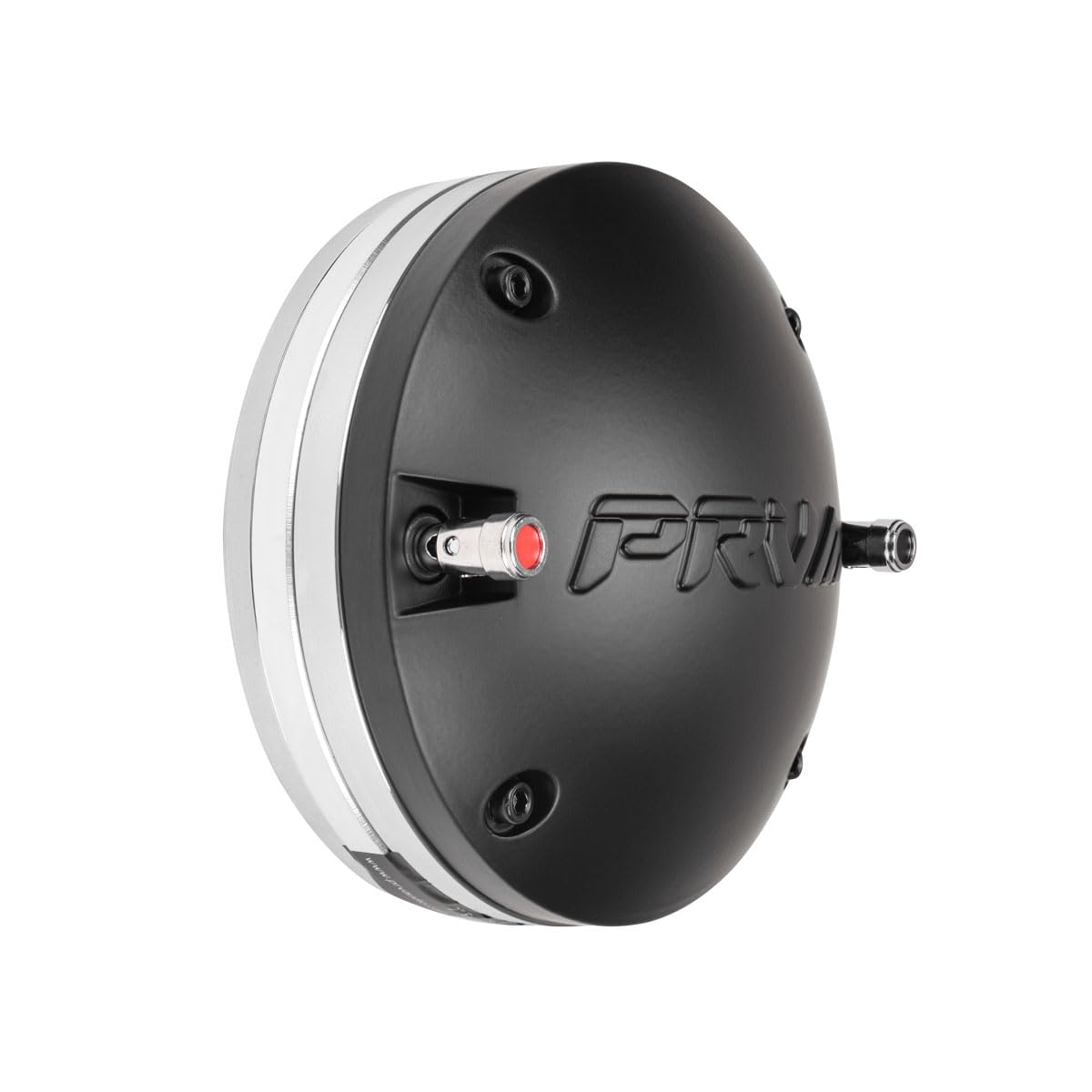

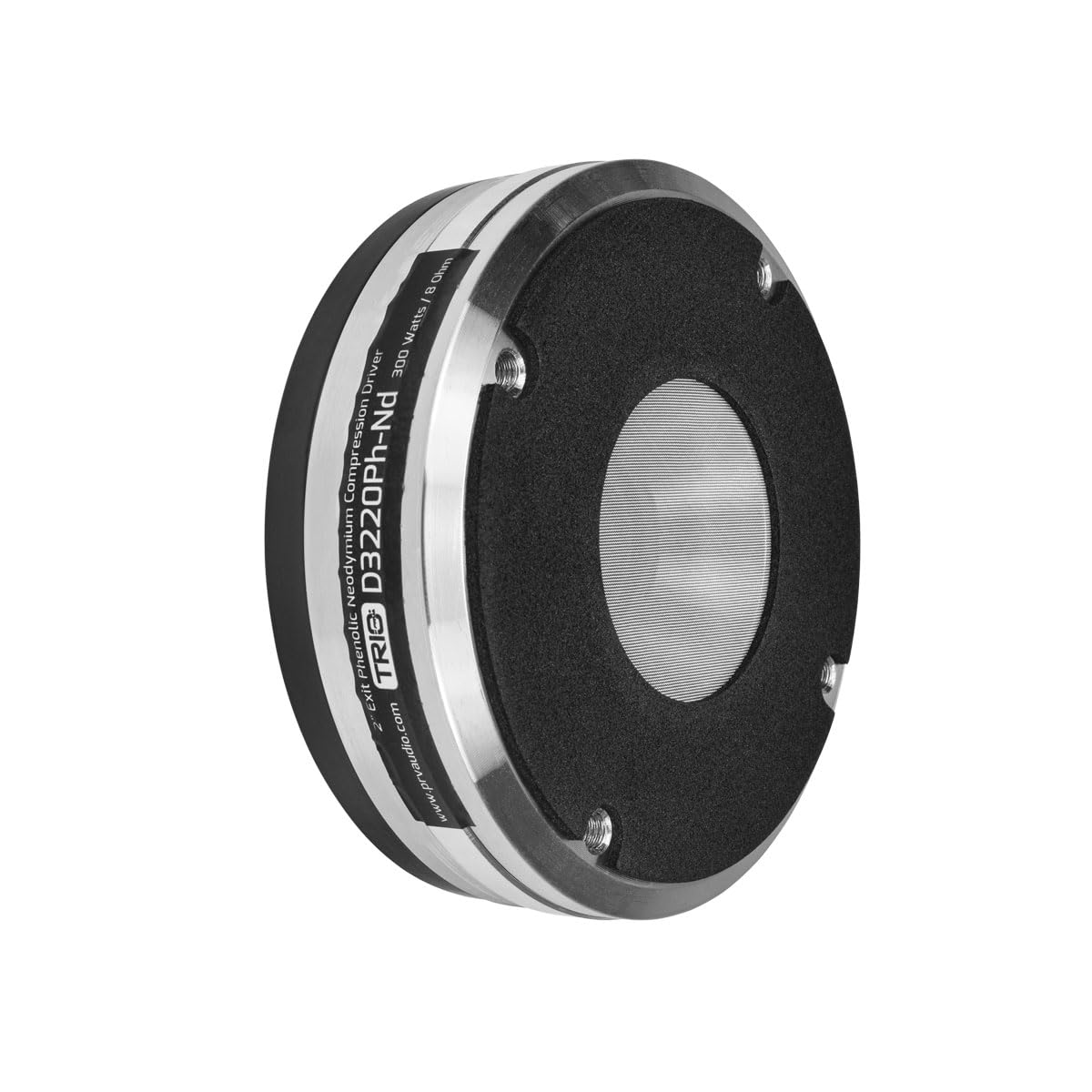

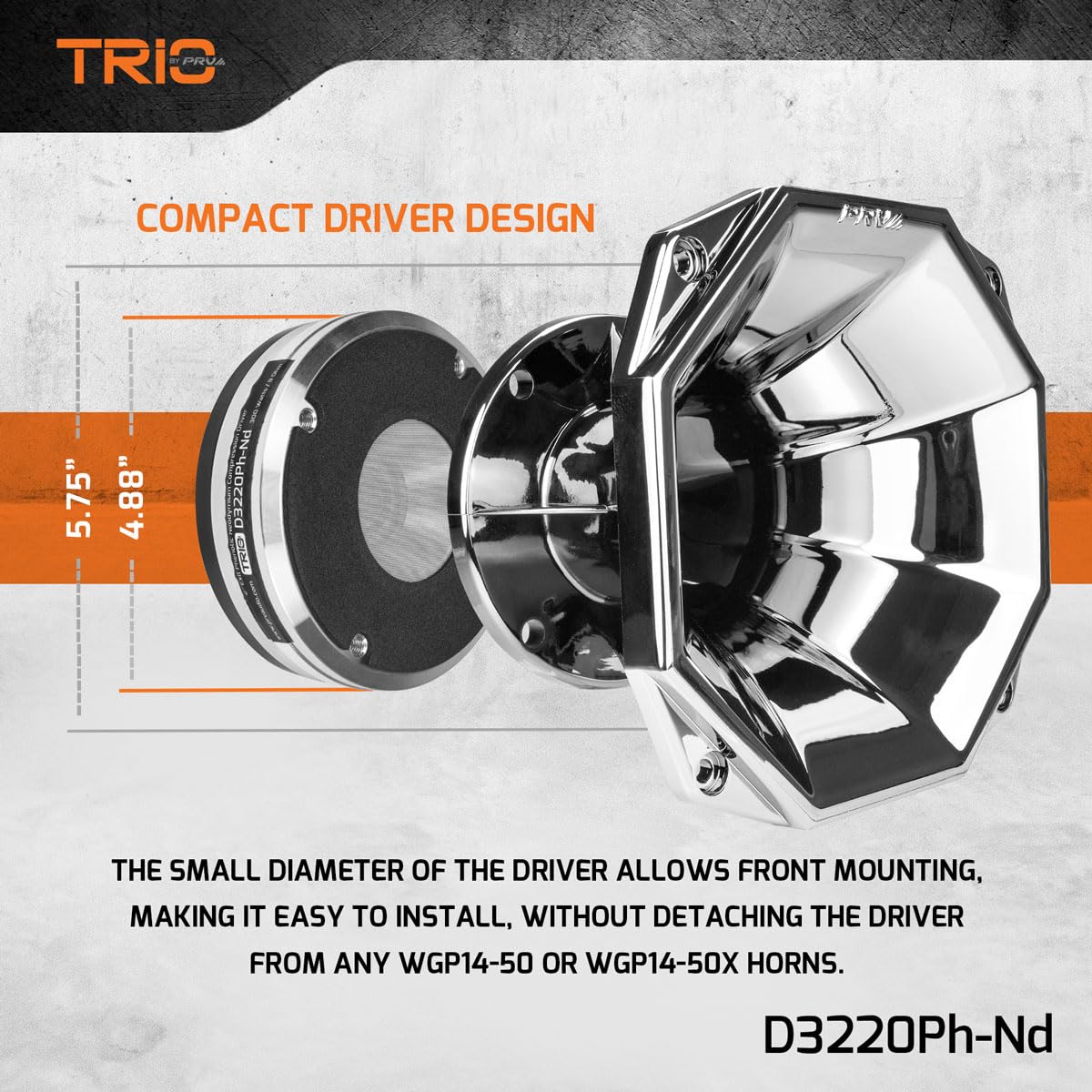

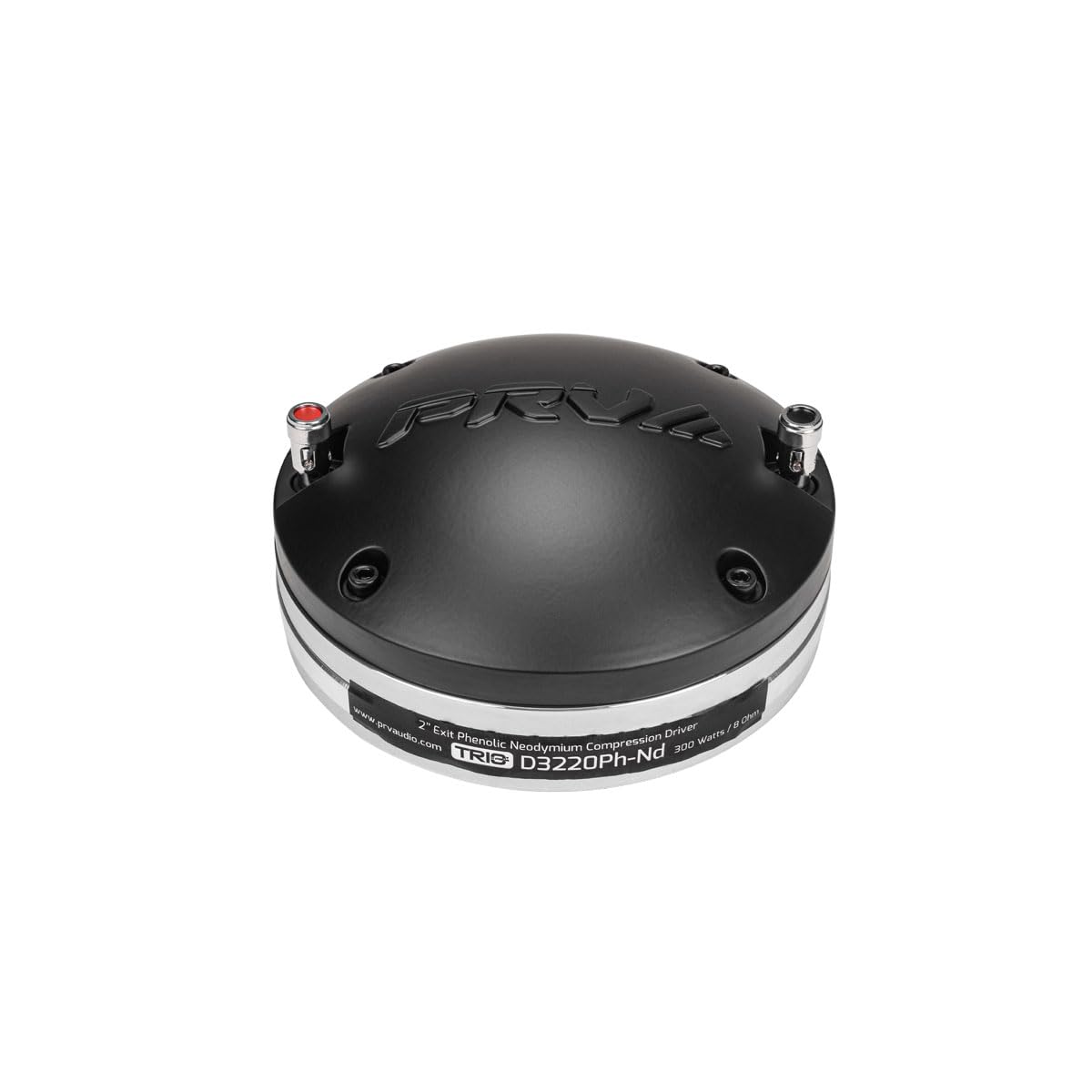

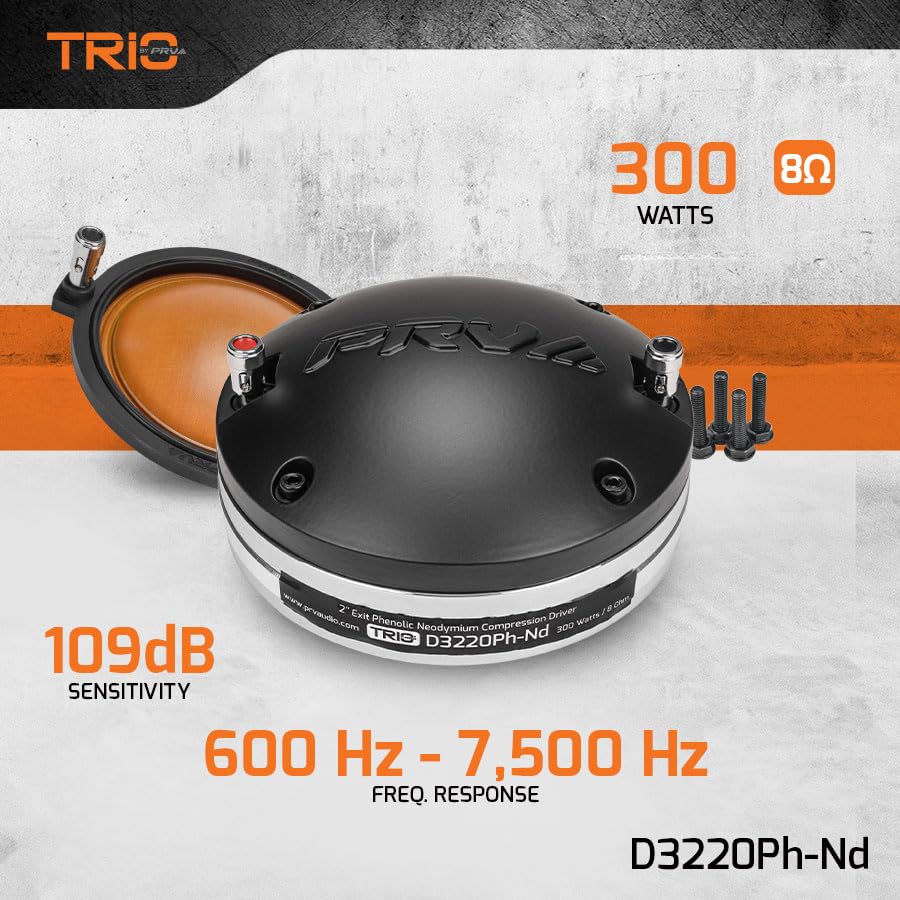

The D3220Ph-Nd is our best driver for vocal reinforcement in car audio systems due to its impressive power-to-size ratio and ability to deliver low midrange response from 650 to 7,500Hz, pure midrange vocal reproduction. The D3220Ph-Nd neodymium phenolic compression horn driver, offers the best performance for size ratio, features a powerful neodymium magnet motor. This allows you to use this horn driver in custom doors and stuntwall systems for vocal reinforcement. We have created a compact and powerful driver that solves the critical component spacing and weight issue in large systems. The special diameter allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. GENERAL SPECIFICATIONS Exit Throat Diameter 2” (50 mm) Nominal impedance 8 Ohm Nominal Power Handling 150 Watts Continuous Program Power (RMS) 300 Watts Max Peak Power 600 Watts Sensitivity 2.83V at 1m 109 dB Recommended Hi Pass Crossover* 800 Hz 12db/oct Crossover **For Full Power Handling Frequency Response at -10dB 600 – 7,500 Hz Voice Coil Diameter 3”(76.2 mm) Voice Coil Wire Copper Voice Coil Former Material Kapton Diaphragm Material Phenolic Flux Density 1.80 T Magnet Material Neodymium Overall Diameter 4.88” (124 mm) Overall Depth 2.21” (56 mm) Mounting Bolt Circle M6 x 4 4” (101.6 mm) Net Weight 5.00 lbs (2.27 kg) D2200Ph WG2200Ph SLIM D3220Ph D3220Ph-Nd D4400Ph Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Nominal impedance 8 Ohm 8 Ohm 8 Ohm 8 Ohm 8 Ohm Nominal Power 100 Watts 100 Watts 150 Watts 150 Watts 200 Watts Program Power 200 Watts 200 Watts 300 Watts 300 Watts 400 Watts Sensitivity 2.83V at 1m 107 dB 107 dB 108 dB 109 dB 109 dB Frequency Response at -10dB 800 – 9,000 Hz 800 – 9,000 Hz 650 – 7,500 Hz 600 – 7,500 Hz 600 – 7,000 Hz Voice Coil Diameter 2” (51 mm) 2”(51 mm) 3” (76 mm) 3”(76.2 mm) 4”(101.6 mm) Overall Diameter 5.24″ (133 mm) 6.14″ (156 mm) 5.71″ (145 mm) 4.88” (124 mm) 7.86” (199.75 mm)
